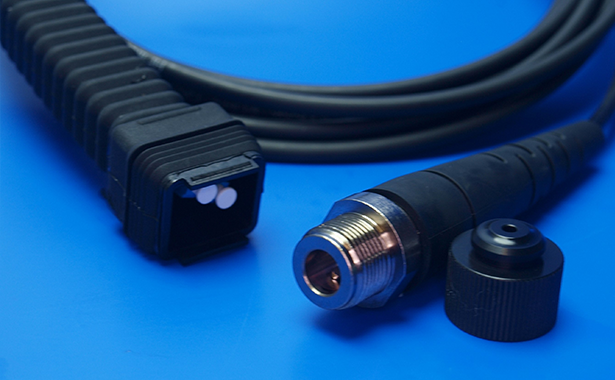

ODC Jumpers for Extreme Environments
IP68-rated, high-durability ODC assemblies for reliable outdoor and industrial fibre connections.
Achieve dependable fibre connectivity in the harshest outdoor and industrial settings with Hughes’ IP68-rated ODC jumper assemblies. Built for rugged deployment, these compact, high-strength connectors withstand forces up to 800N while delivering excellent optical performance with low insertion loss (≤0.3dB) and high return loss (≥45dB). Tested to over 100 mating cycles and rated for temperatures from -40°C to +85°C, ODC jumpers are engineered for “always-on” reliability in FTTA, CPRI and defence infrastructure.
Download Datasheet

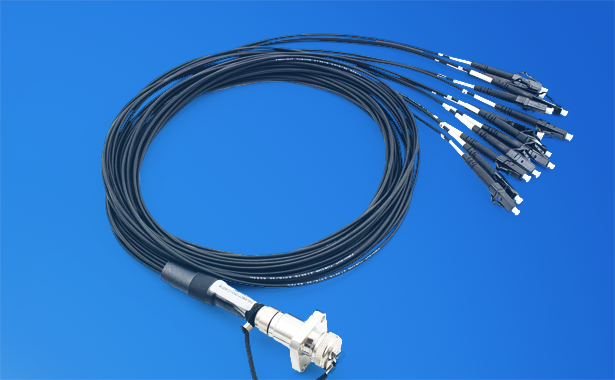

12F ODF-DLC Singlemode Trunks
High-performance, outdoor-rated trunks for reliable RRH connectivity.
Hughes’ Rugged 12F ODF-DLC singlemode fibre trunks are engineered for demanding outdoor links between base stations and remote radio heads. Featuring six IP67-rated ODF connectors with pulling socks on one end and six DLC Uniboot connectors in flexible conduit on the other, these assemblies deliver secure, weatherproof connectivity with low insertion loss and excellent return loss. Built with G657A1 singlemode fibre and UV-resistant LSZH jackets, they offer strong environmental resistance and long-term reliability for high-capacity deployments.
Download Datasheet

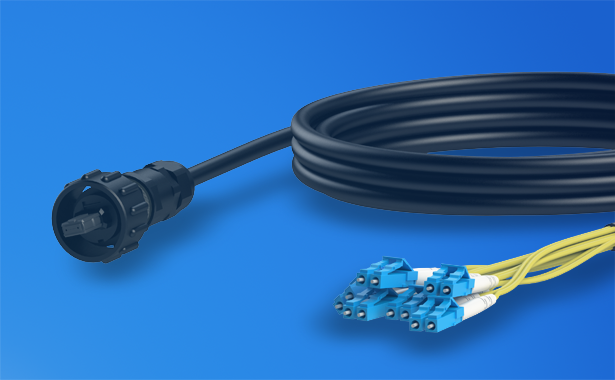

MPO to LC Jumpers
Low-loss, high-return-loss jumpers built for efficient G657A2 singlemode signal breakouts.
Deliver compact, high-performance connectivity for dense fibre networks with Hughes’ MPO to LC jumpers. Featuring female MPO/APC connectors (60 dB return loss) to DLC connectors (50 dB return loss), these assemblies support 2–64 fibre cores and offer custom DLC options for high-bandwidth telecom and data-centre environments. Designed for fast installation and minimal signal degradation, they provide repeatable low-loss performance in high-density deployments.
Download Datasheet

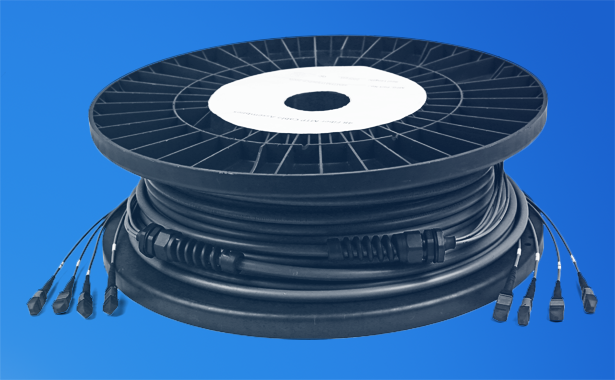

Rugged SM MPO Trunk
Outdoor-rated, low-loss fibre trunk cable with IP67 sealing.
Hughes’ singlemode 24-core MPO trunk cable is built for high-capacity fibre connectivity in challenging outdoor environments. With an 8.5 mm LSZH jacket, stainless steel armouring and ODVA-rated hoods, it delivers mechanical strength and weather resistance while maintaining low insertion loss (≤0.3 dB) and high return loss (≥50 dB). IP67-rated sealing ensures consistent optical performance in industrial and telecom deployments, supporting dense networks with dependable long-term reliability.
Download Datasheet

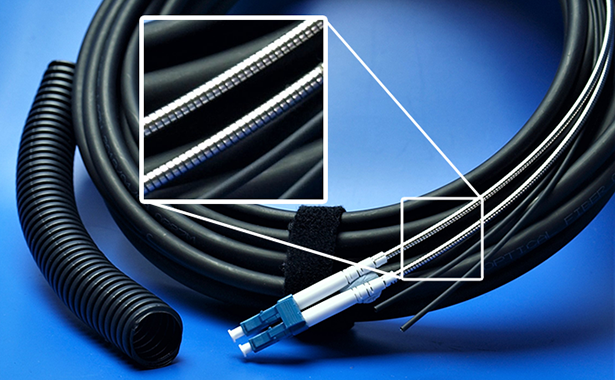

Armoured LC–LC Outdoor Jumpers
IP67-rated, bend-insensitive jumpers with stainless steel armour for rugged performance.
Hughes’ Outdoor Armoured Fibre Jumpers (ODFJ) are designed for harsh environments and FTTA deployments. With 150 N cable retention, IP67 ingress protection and bend-insensitive fibre reinforced by stainless steel reflex armouring, these jumpers deliver robust mechanical and environmental resilience. Available in OM2, OM4 and singlemode, in simplex or duplex formats, they support flexible deployment across a wide range of networks. Rapid manufacturing and urgent delivery across the UK and Europe ensure high availability for critical infrastructure.
Download Datasheet

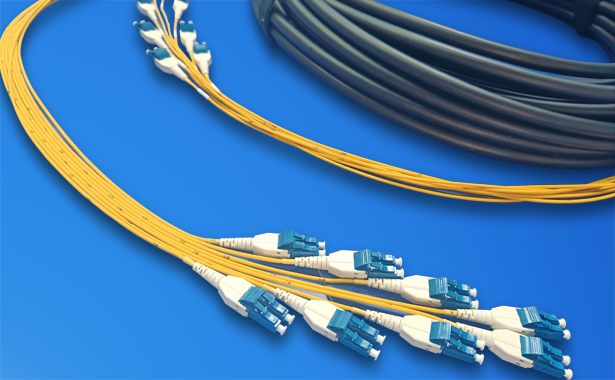

16C Singlemode Multicore Trunks
16-core OS2 fibre trunks engineered for >100G data transfer over distances up to 10 km.
Hughes’ LC–LC singlemode multicore trunks provide high-capacity fibre connectivity for demanding long-distance networks. The 16-core OS2 design supports data rates exceeding 100G over distances up to 10 km, with minimal insertion loss and excellent return loss. Colour-coded yellow breakouts enable fast, error-free identification during installation and maintenance. Ideal for data centres, telecoms and backhaul networks, these trunks deliver dependable high-bandwidth performance where you need it.
Download Datasheet
